SATCOM Antenna Systems

Cobham has completed a gateway design that utilizes Cobham custom solutions as well as integrates commercially available third party technology. Cobham is uniquely positioned to offer a novel approach to tracking antennas that will allow our partners to offer end customers a highly competitive antenna price point with a significantly reduced operational expense proposal over the 20 years the system life.

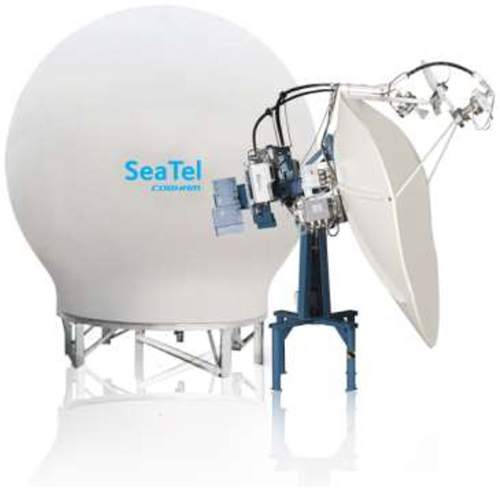

Cobham Gateway 2.4m Ka Tracker

Gateway 2.4m Ka Tracker

  • Delivering 97XX based Ka band tracker to USA for IOT application 2Q2018
  • SNMP based TLE M&C system included
  • LEO/MEO solution targeted specifically to cube, nano and small satellite market
  • ROI of less than a year when compared to having a third party provide satellite data

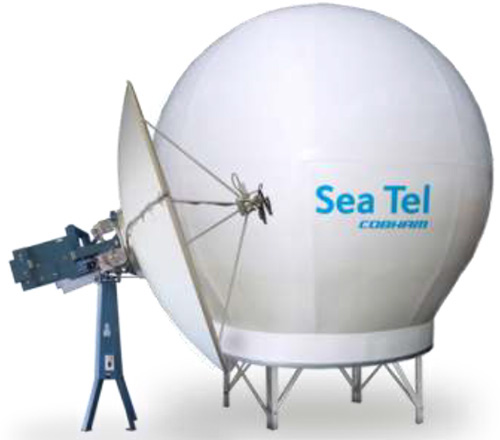

Gateway 3.7m S Band Tracker

Gateway 3.7m S Band Tracker

  • Delivering ST144 based S band tracker to Europe for IOT application in June
  • X/S Band can be delivered with ~20 week lead time
  • SNMP based TLE M&C system included
  • LEO/MEO solution targeted specifically to cube, nano and small satellite market
  • ROI of less than a year when compared to having a third party provide satellite data

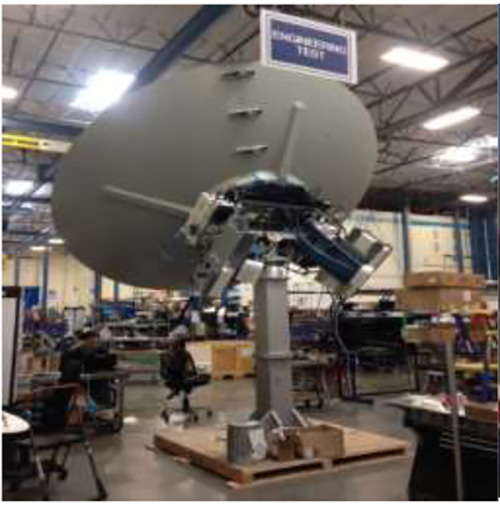

3.7m Ka Tracker

3.7m Ka Tracker

3.7m Dual Pol Full Ka Band

  • 3.5GHz Tx/Rx
  • 4 BUC per pol
  • Up to Dual 500W Ka TWTA
  • Unlimited Az
  • 16 IFLs (fiber based)
  • High performance
  • Communications smallSat configurations

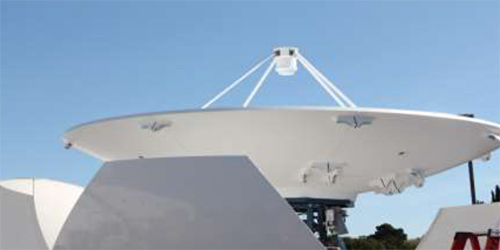

Tracker 4300 L/S/C Band T
Tracker 4300 L/S/C Band T

Tracker 4300 L/S/C Band T

  • Multiple Bands (L/S/C)
  • Simplified Pedestal
  • No Wind Load Restrictions
  • Used for Earth Imaging Satellites
Tracker 4300 L/S/C Band T
Tracker 4300 L/S/C Band T

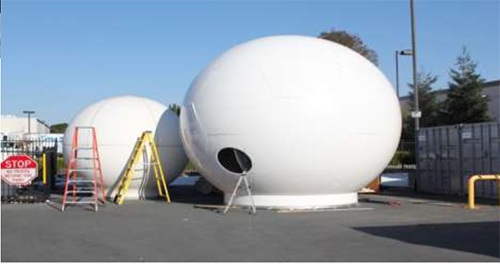

Tracker 6000 X/C Band

  • Single Bands (X/C)
  • 8m Radome
  • No Wind Load Restrictions
  • Globalstar Ground stations
